Pre-stripped Barricade Reflective Sheeting

Pre-stripped Barricade Reflective Sheeting Description

TN936 PVC + Acrylic Commercial Grade Barrier sheeting is an enclosed beaded retroreflective sheeting which consists of retroreflective glass beads sealed onto a substrate. It is suitable for plotter cutting and digital print, untearable. Please do not use it for screen print etc.

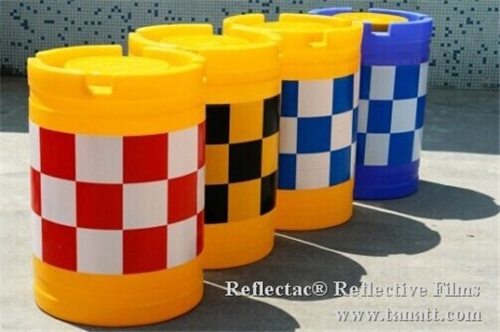

TN936 specially design for Japanese Barrier using, it can stick without the gap.

Technical Data

• Retroreflective Elements: enclosed glass beaded
• Durability: 1-3 years outdoor by the specialist application (under vertical outdoor exposure)
• Roll Sizes: 1.24M (W) x 45.7M, 48” (W) x 50 yards
• Coefficients of Retroreflection (Ra)

* Test by Roadmaster according to ASTM D4956

• Film Thickness: 105-110 mic
• Face Film: Acrylic + PVC
• Adhesive: 30 mics permanent pressure sensitive adhesive
• Release Liner: 115 GSM Poly coated paper liner (white or yellow)
• Application Surface: Flat surface only such as aluminum
• Application Temperature: 18-28℃ by any of the following methods:
  • Mechanical squeeze roll applicator
  • Hand squeeze roll applicator
  • Hand application is recommended for copy only

Leading Time

• We have regular stock in the warehouse, otherwise, it will take 7-10 days upon deposits receive. Please confirm with us before ordering.

OEM & ODM

• For order less than 100 rolls, we can do OEM Carton and Product mark
• For order more than 100 rolls, and request your own logo, it needs one more deposit for cylinder cost

Quality Inspection

• Raw material inspection: From face film to release paper, all the material will be strictly inspected before putting into production. We only use Qualified raw materials;
• Production inspection: QC will cut production samples, bring it to our own lab then inspect brightness, stretch, thickness, etc.，also they will bring Brightness detector to production line and check for brightness.
• Final inspection：We will sample test the final product, and also do inspection under client’s requested.

Package

• Inner packing: PET inner film + Plastic Bag + 2 pc Plastic Plug
• Outer packing: 5 layers carton box with carton sealing nail
• *Please contact our staff for customized products.
• Loading Port：Shenzhen or other China port

Storage

• Reflective Sheeting must be used within 1 year after the date of receipt from TANATT;
• Please use PET inner film to tightly packed partially used Rolls, then return it back to the shipping carton. Vertically placed it can avoid distortion due to substrate buckling or extension due to moisture absorption, and avoid pressure that may damage the reflective layer.
• Store the sheeting in a clean, dry area at 20 ℃ and 50% relative humidity and away from direct sunlight;
