Dot-C2 Truck Hi Vis Reflective Tape

Conspicuity Reflective Tape Description

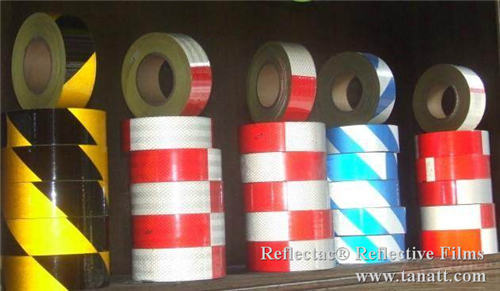

Tanatt Reflective Tape – TN9024 reflective marking Conspicuity tape is improving the visibility for the truck, trailer, and commercial vehicles, school buses for the roadway safety in adherence to transportation regulations. It is a DOT-C2 reflective tape with 10 years durability.

Tanatt Reflective sale TN9024 as pieces, small rolls or big rolls. We can pre-printing your LOGO as your requirement.

Technical Data

• Retroreflective Elements: enclosed glass beaded
• Durability: 10 years outdoor by the specialist application (under vertical outdoor exposure)
• Printing: 11″ red/ 7″ white or 6″ white/ 6″ red
• Roll Sizes: 0.05M (W) x 45.7M, 2” (W) x 50 yards  Or 0.05M(W) x 50M
• Piece Size: 0.05M(W) x 0.3M *Kiss cut is available
• Coefficients of Retroreflection (Ra)

* Test by Roadmaster according to ASTM D4956

• Face Film: PMMA
• Release Liner: 150 GSM Poly coated paper liner (white or yellow)
• Application Surface: Flat surface only such as aluminum
• Application Temperature: 15℃ or higher by any of the following methods:
  • Mechanical squeeze roll applicator
  • Hand squeeze roll applicator
  • Hand application is recommended for copy only

Leading Time

• We have regular stock in the warehouse, otherwise, it will take 7-10 days upon deposits receive. Please confirm with us before ordering.

OEM & ODM

• All of the TN9024 with TANATT LOGO for print. If need remove it, we will charge For cylinder
• For order more than 100 rolls, and request your own logo, it needs one more deposit.

Quality Inspection

• Raw material inspection: From face film to release paper, all the material will be strictly inspected before putting into production. We only use Qualified raw materials;
• Production inspection: QC will cut production samples, bring it to our own lab then inspect brightness, stretch, thickness, etc.，also they will bring Brightness detector to production line and check for brightness.
• Final inspection：We will sample test the final product, and also do inspection under client’s requested.

Package

• Inner packing: PET inner film + Plastic Bag each carton
• Outer packing: 5 layers carton box with carton sealing nail

• *This data only for reference
• *Please contact our staff for customized products.
• *The data does not include the pallet size, we recommended increasing the pallet to protect the goods.
• Loading Port：Shenzhen or other China port

Storage

• Reflective Sheeting must be used within 1 year after the date of receipt from Tanatt;
• Please use PET inner film to tightly packed partially used Rolls, then return it back to the shipping carton. Vertically placed it can avoid distortion due to substrate buckling or extension due to moisture absorption, and avoid pressure that may damage reflective layer.
• Store the sheeting in a clean, dry area at 20 ℃ and 50% relative humidity and away from direct sunlight;
